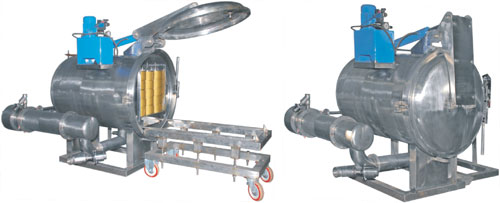

H.T.H.P. Horizontal Single Vessel Dyeing Machines

IN STEAMING MACHINE BUSINESS

......

Salient Features

Loading capacity from 100kg to 1000kgs.
M/c can be loaded 50% & above at almost constant liquor ratio.
Automatic coupling system to increase batch capacity due to modular design.
Machine can be installed on a normal plain ground floor without special foundation.
Machine can be installed at mezzanine ceiling level, even at under ground pits.
Elimination of over head cranes for loading and unloading.
Low liquor ratio of 1:5 to 1:7 as per package density.
High flow rate due to axial flow pump design with inbuilt flow direction reversal system.
Perfect dyeing uniformity can be obtained even in large diameter package.

(applicable To All Dyeing Machines)

All machines are available in semi-automatic & Automatic version.
All Machines are made from corrosion resistant stainless steel grade AISI-316 SS.
Pressure extraction system.
Package outer diameter 190 mm.
Die spring inside diameter 57 mm x 170 mm length.
Package weight depends on type of yarn.
Polyester FDY package weight will be approx. 1.5 kgs at package density 0.4 gms/cm³.
Cotton package weight will be approx. 1 kgs at package density 0.27 gms/cm³.
Operating temperature 140°c maximum.
Operating pressure 4 kg / cm²maximum.
