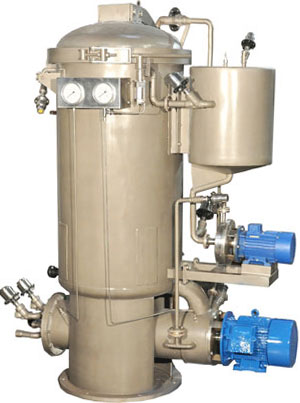

Vertical Dyeing Machine (H.T.H.P.)

Vertical Dyeing Machine (H.T.H.P.)
......
Salient Features
  • Airpad dyeing system helps keeping low liquor ratio from 1:4 to 1:7compared to fully flooded system. It leads to saving of water, dyestuff, chemical and heat energy.
  • Coil type heat exchanger made out of high grade seamless tubes for high heat transfer efficiency.
  • In addition to spring loaded safety valve, the machine is equipped with an additional pressure switch to release pressure if it exceeds set limit for utmost safety.
  • There is no need to rotate the lid on main vessel to lock the machine but outside ring clamps the lid with vessel for locking. As there is no rubbing of lid, lipseal life increases.
  • Option of various type of carriers for fibre, hank, muffs, tops & beams.Control panel is fabricated form stainless steel for longer life.Modular design. Two machines of same capacity canbe coupled to increase batch size.

Technical Specifications

Model Vessel Dia. MM Capacity * Kgs Pump KW Carrier Detail Work Space (Meters)
No. Of Spindles Pack/Spindles Total Packages Length Width Height Max. Height
BMVD 015 500 18 3.7 3 4 12 1.5 1.2 1.2 2.25
BMVD 025 500 27 3.7 3 6 18 1.5 1.2 1.5 2.5
BMVD 050 600 60 5.5 5 8 40 1.7 1.5 2.0 3.5
BMVD 100 700 105 9.3 7 10 70 2.0 1.5 2.3 4.5
BMVD 150 900 156 11 13 8 104 2.2 1.75 2.0 4.0
BMVD 200 900 215 15 13 11 143 2.2 1.75 2.4 4.5
BMVD 250 1000 270 18.5 18 10 180 2.5 2.0 2.3 4.5
BMVD 300 1000 324 22 18 12 216 2.5 2.0 2.3 5.0
BMVD 400 1250 420 30 28 10 280 3.0 2.5 2.75 4.5
BMVD 500 1250 504 37 28 12 336 3.0 2.5 3.0 5.0
BMVD 600 1400 630 37 35 12 420 3.5 3.0 3.2 5.2
BMVD 700 1400 735 44 35 14 490 3.5 3.0 3.5 5.5
Monoblock Design Injection pump
Monoblock Design Injection pump.
Monoblock Design Main pump.
Monoblock Design Main pump.
High Pressure Safety.
High Pressure Safety.

Applications

  • Yarn Packages.
  • Small Width Fabrics.
  • Zipper Tapes.
  • Warp Beams.
  • Loose Fiber.
  • Yarn Hanks.
  • Muffs & Tops.
Package Carrier
Package Carrier
Beam Carrier
Beam Carrier
Zipper Tape Carrier
Zipper Tape Carrier
Loose Yarn Carrier
Loose Yarn Carrier
