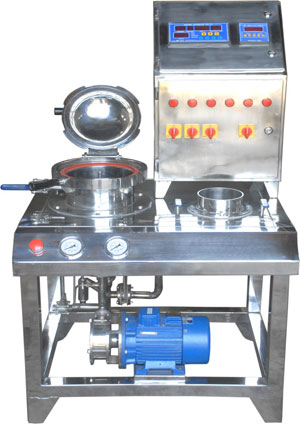

H.T.H.P. Pilot Dyeing Machine

H.T.H.P. Pilot Dyeing Machine
......
Applications
  • Yarn Packages.
  • Small Width Fabrics.
  • Zipper Tapes.
  • Yarn Hanks.
  • Loose Fiber.

Technical Specifications

Model BMPD-01 BMPD-05
Capacity 1-2 Kg. 3-5 Kg.
Main Pump 2 HP 3 HP
Max. Temperature 1400C 1400C
Air Pressure 6 Kg/cm2 6 Kg/cm2
Steam Pressure 5-6 Kg./cm2 5-6 Kg./cm2
Water Ratio 1:8 - 1:10 1:8 - 1:10
Max. Pressure 4 Kg/cm2 4 Kg/cm2
