Yarn Steaming Autoclave

Temperature Range Steaming from 65° C -135° C. upto 150° C

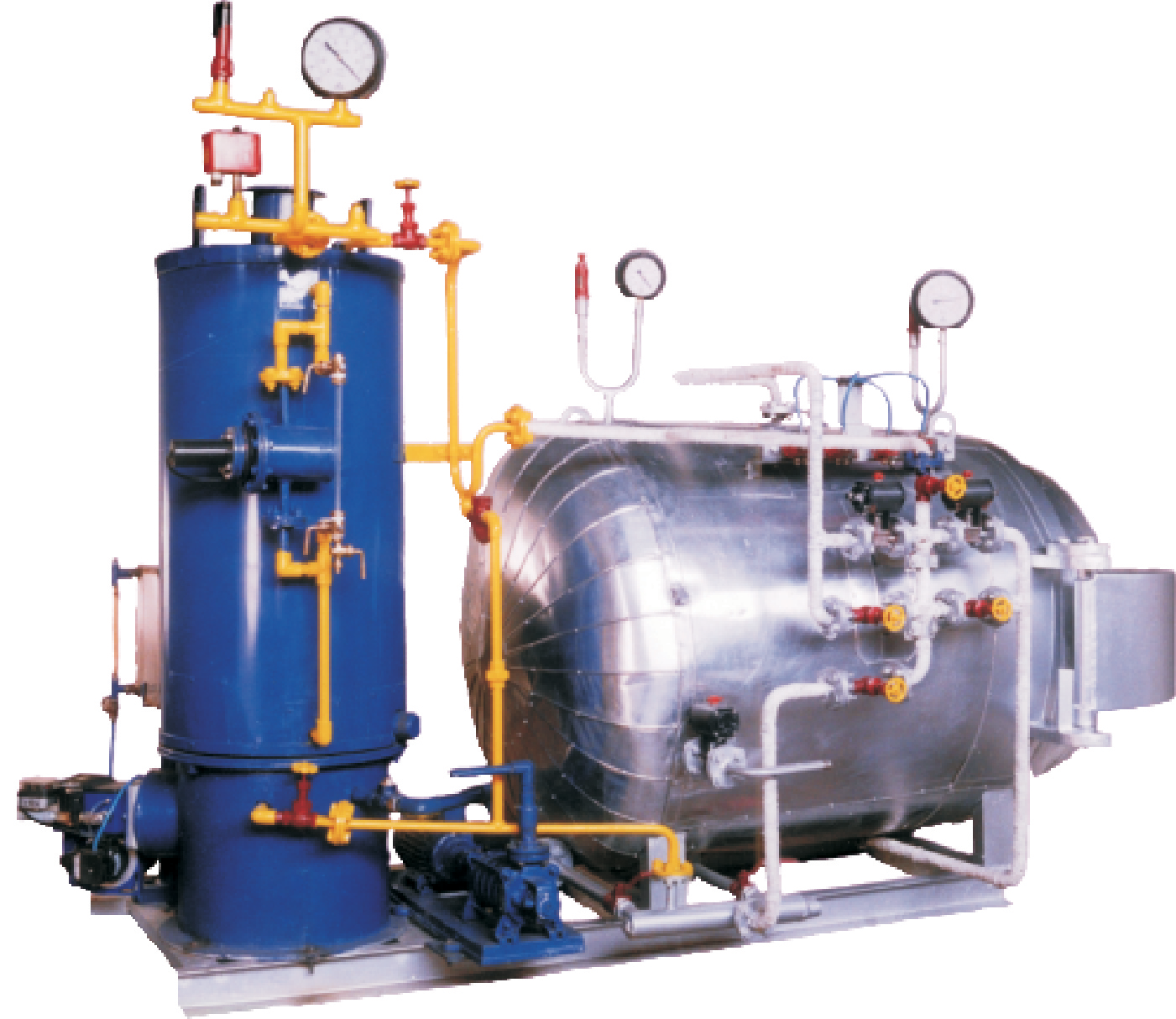

Yarn Steaming Autoclave

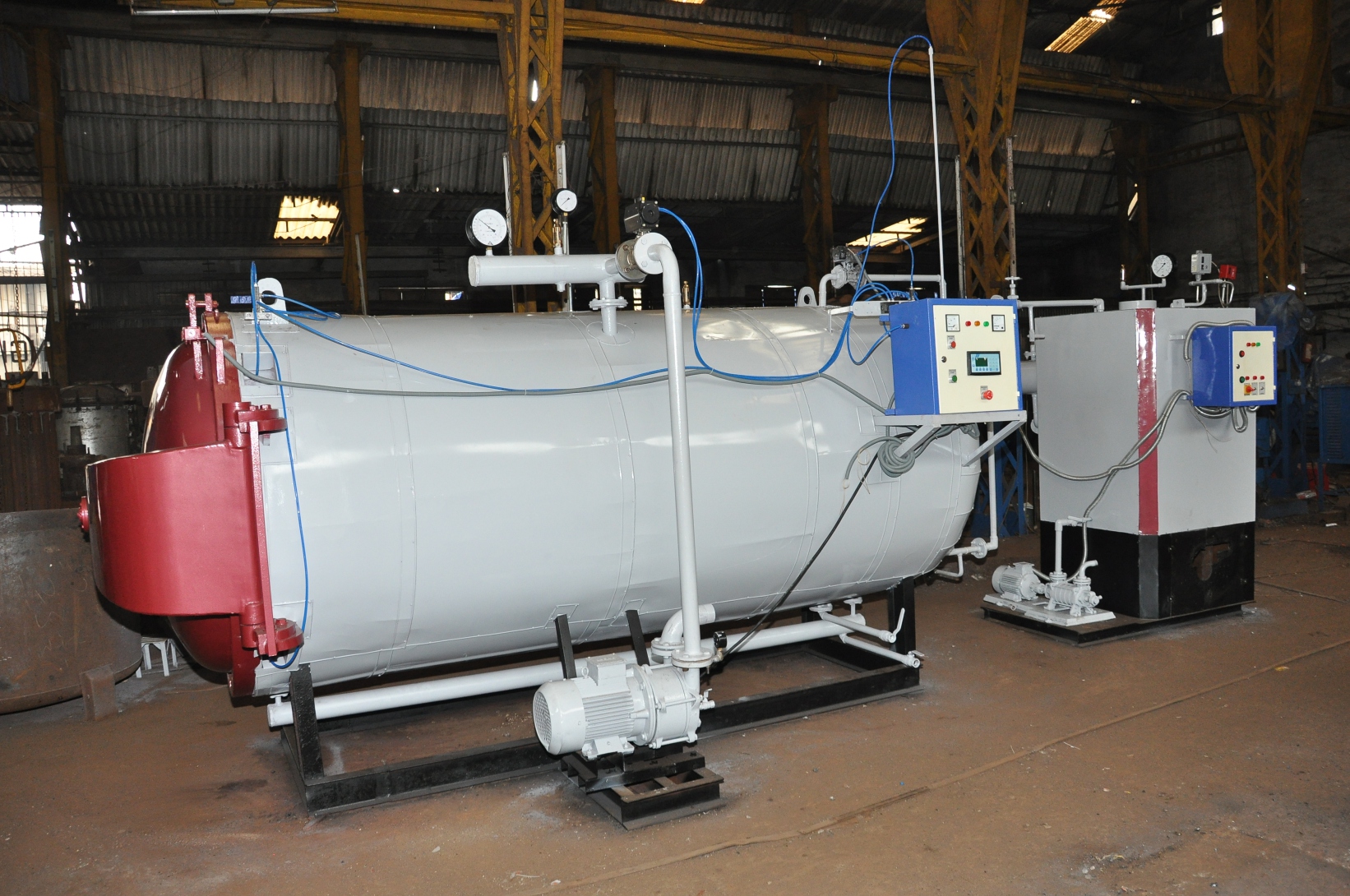

..Hinged Door Opening
Yarn Steaming Autoclave
PLC based Heat Setting Machines integrated with the Space Dyeing Machine

PLC based Heat Setting Machines integrated with the Space Dyeing Machine for the manufacturer of High tenacity yarns and specially treated carpets, treated for Anibacterial and/or Anti odour and/or fire retardant and/or water repellent properties.


Each production step like spinning, twisting or knitting causes tension in yarn & fibre. Yarns tend to snarl in order to relax. Tension and snarling lead to problems in downstream processing. Blue moon yarn steaming autoclaves provides optimal and smooth treatment for following application.

  • Heat setting.
  • Fixation of textured & twisted filament.
  • Relaxation of high twisted yarn.
  • Torque Stabilization.
Advantages
  • Twist set and relaxed.
  • Treatment of Natural fibre, Synthetics, Blends & Micro Fibre.
  • Inexpensive paper tubes can be used. Treatment in plastic boxes, trolleys & crill.
  • Absolutely saturated - dry steam for steaming.
  • Steaming from 65° C -135° C.
  • No Shock treatment, No condensate.
  • Uniform steam distribution.
  • Even steam penetration.
  • Less electricity/energy consumption.
  • Short payback time.
  • Better dye affinity.
Application
  • Polyester, PP
  • Acrylic
  • Viscose
  • Nylon
  • Pure Silk
  • Metallic film covered yarn - Jari
  • Spun Blends like PV, PC, 100% Polyester
Vacuum

Vacuum

Exhausts all air from cone

Vacuum

Steam

Evenly penetrates in to the yarn.

Vacuum

Holding Period

At constant temp. yarn gets conditioned homogeneously.

Vacuum

Final Vacuum

Exhausts all gases & steam from the machine.

Yarn Steaming Autoclave
Yarn Steaming Autoclave

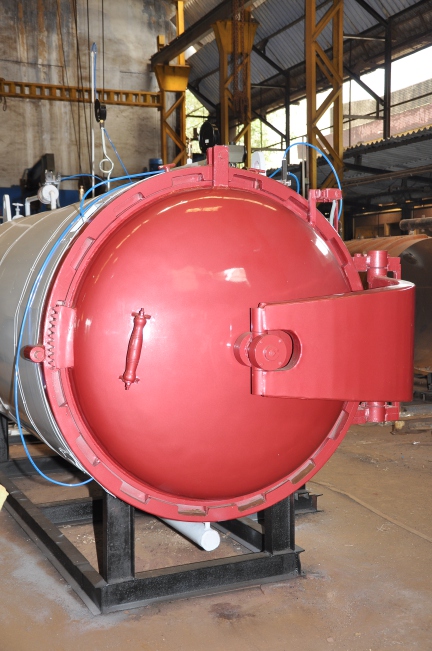

..Hinged Door Opening

Relaxing
Relaxing
Heat Setting
Heat Setting
Vacuum System
Vacuum System
Carrier
Carrier
Control Panel
Control Panel

Technical Specifications

Data BM 150 BM 300 BM 500 BM 800 BM 1000
Capacity (Kgs./Batch)
150 300 500 800 1000
Diameter of Vessel (Meter)
1.3 1.3 1.6 1.6 1.6
Usable length (Meter)
1 2 2 2.5 2.5
Overall Diameter of M/c. (Meter)
1.6 1.6 1.9 2 2
Overall Length of M/c. (Meter)
2 3 4 4 5
Overall height of M/c. (Meter)
2.3 2.3 2.3 2.6 2.6
Area required (W x L) (Meter)
3 x 7 3 x 8 3 x 9 3.5 x 8 3.5 x 9
Vacuum Pump (KW) 3.7 5.5 5.5 5.5 7.5
Heating Source Electric Heater / Steam Boiler / Wood fired / Thermic Oil Heater
Working Temperature 65° C to 135° C
Working Pressure -700 mm Hg to 42 PSI (3 kg/cm2)
Method of Loading Manual - Mechanized
Method of Locking Manual - Mechanized
Vacuum System  vacuum pump to achieve 700 to 720 mm Hg
Material Of Construction C. S., S. S. 304
